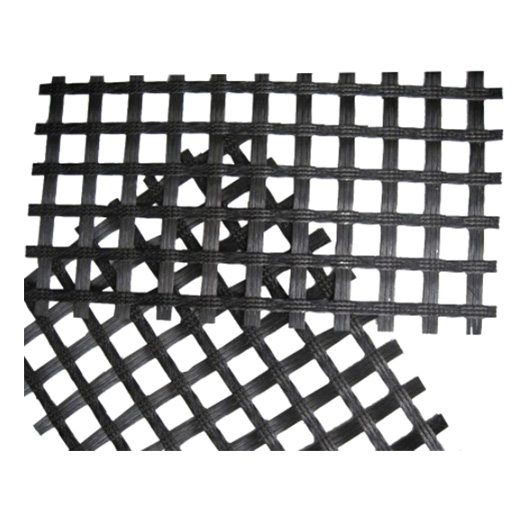

Airport Runway Reinforcement Fiberglass Geogrid

geogrid factory direct roll width 6m length 200m road widening airport runway reinforcement fiberglass geogrid

5000 - 9999 Square Meters: $0.68  >=10000 Square Meters: $0.59

send email to us

Products Details

Type Geogrids
Warranty 3 years
After-sale Service Online technical support
Project Solution Capability Others
Application ourdoor, Railways,highways,bridge,approach,wharf
Design Style Industrial
Place of Origin Shandong, China
Model Number GSZ
Product name geogrid
Color Black
Raw Material steel and PE
Certificate ISO
Width 1-6m
Length 50-100m
Tensile strength 30-200kN/m
Material Fiberglass
MOQ 5000sqm
★ High tensile strength and low elongation. Glass fiber geogrid takes glass fiber as raw material, has high deformation resistance, and the fracture elongation is less than 3%. ★ No long-term creep. As a reinforcing material, it has the ability to resist deformation under long-term load, that is, creep resistance is very important. Glass fiber will not creep, which ensures that the product can maintain its performance for a long time. ★ The melting temperature of thermal stability glass fiber is above 1000 ℃, which ensures the thermal stability of glass fiber geogrid in paving operation. ★ Compatibility with asphalt: the coating material of glass fiber geogrid in the post-treatment process is designed for asphalt mixture, and each fiber is fully coated, which is very similar to asphalt High compatibility, so as to ensure that the glass fiber geogrid will not be isolated from the asphalt mixture in the asphalt layer, but firmly bonded together. ★ Physicochemical stability: after coating with special post-treatment agent, glass fiber geogrid can resist all kinds of physical wear and chemical erosion, biological erosion and climate change, so as to ensure that its performance is not affected. ★ Aggregate interlocking and limitation because the glass fiber geogrid is a network structure, the aggregate in the asphalt concrete can penetrate it, thus forming a mechanical interlocking. This restriction hinders the movement of aggregate, so that asphalt mixture can achieve better compaction state, higher bearing capacity, better load transfer performance and less deformation under load. Fiber Glass Geogrid For Road Construction Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life of pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load. High vertical and horizontal tensile strength, low unit extension, high flexibility, and favorable high and low temperature resistance. The products after surface covering own the favorable property of alkali resistance and aging resistance.Supply Ability: 600000 Square Meter/Square Meters per Month
Specification 30-30 50-50 80-80 100-100 120-120 150-150 200-200
Ultimate Strength (KN/M) MD 30 50 80 100 120 150 200
CD 30 50 80 100 120 150 200
Elongation(%)

<=4
Grid Size, mm

12.5*12.5,25.4*25.4,40*40
Roll Width

1-6m
Roll Length

50-200m
Road Widening , Airport Runway reinforcement , Road Pavement reinforcement , Road Maintenance and Repair
