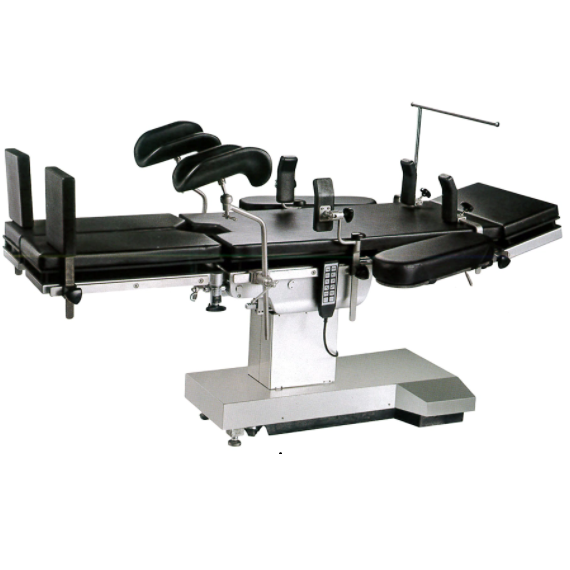

Y09A electric comprehensive operating table imported configuration

Imported motor push rod (LINAK) Motor longitudinal translation ≥400mm It can be used with C-arm X camera Optional memory sponge mattress Y091A is composed of imported motor system, control system, optional X - ray table and base.The whole is made of stainless steel, and the base is t-shaped to increase the comfort of the doctor's feet. The base surface is made of high-grade composite materials.It is more suitable for the characteristic working environment of the hospital. The bed surface can be moved 400mm longitudiously. There is no dead Angle under the platform, and the mattress is made of polyurethane foam.

Products Details

Imported motor push rod (LINAK) Motor longitudinal translation ≥400mm It can be used with C-arm X camera Optional memory sponge mattress Y091A is composed of imported motor system, control system, optional X - ray table and base.The whole is made of stainless steel, and the base is t-shaped to increase the comfort of the doctor's feet. The base surface is made of high-grade composite materials.It is more suitable for the characteristic working environment of the hospital. The bed surface can be moved 400mm longitudiously. There is no dead Angle under the platform, and the mattress is made of polyurethane foam.
Type Y09A type I Y09A type II
Length and width of bed surface 2010*500mm 2010*500mm
Minimum and maximum height of countertop 640*930mm 640*930mm
Table forerake and hypsokinesis Angle ≥25° ≥20° ≥25° ≥20°
Backplane folding Angle up and down ≥75° ≥10° ≥75° ≥10°
Left and right Angle of countertop ≥20° ≥20° ≥20° ≥20°
Maximum Angle of leg plate folding Back folding≥90°detachable Outward 180° Back folding≥90°detachable Outward 180
Longitudinal movement distance of mesa(mm) None Movement≥400mm
Adjustment range of head plate Up folding ≥45° Back folding≥90°detachable Up folding ≥45° Back folding≥90°detachable
